# 2 | PyQt5를 이용해서 레이아웃 배치하고 꾸미기

토마토. 2022. 1. 25. 21:04

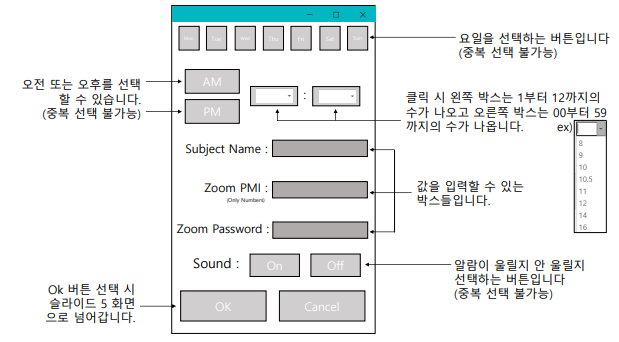

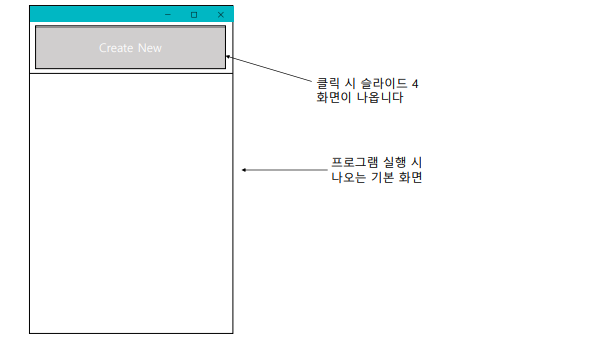

목표 : 원하는 배치도 형태

1. 첫번째 화면

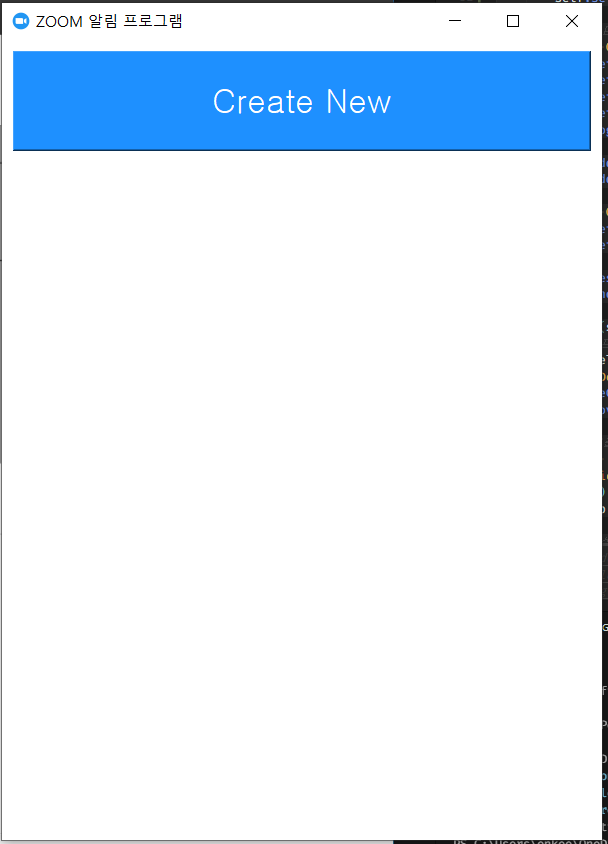

실행 화면


소스 코드

# 모듈을 불러옵니다.
import sys
from PyQt5.QtWidgets import *
from PyQt5.QtGui import *
from PyQt5.QtCore import QCoreApplication, QDate, Qt
from PyQt5 import QtSql


# 메인 클래스를 계획합니다.
class MyApp(QMainWindow, QWidget):
    # UI 화면을 초기화해줍니다.
    def __init__(self):
        super().__init__()
        self.date = QDate.currentDate() # 오늘 날짜를 받아옵니다.
        self.initUI()

    # UI에 포함될 구성요소의 기본적인 설정을 수행해줍니다.
    def initUI(self):
        # 화면의 아이콘과 이미지를 설정해주는 코드입니다.
        self.setWindowTitle('Icon')
        self.setWindowIcon(QIcon('web.png'))
        self.setWindowTitle('ZOOM 알림 프로그램')
        # 화면의 배경색상을 흰색으로 설정해줍니다.
        pal = QPalette()
        pal.setColor(QPalette.Background,QColor(255,255,255))
        self.setAutoFillBackground(True)
        self.setPalette(pal)

        # 그리드 레이아웃으로 화면을 구성합니다.
        grid = QGridLayout()
        self.setLayout(grid)

        # 첫 화면에 두기 위한 버튼을 생성합니다.
        btn1 = QPushButton('Create New', self)
        btn1.setFont(QFont('맑은 고딕',20))
        btn1.setStyleSheet('QPushButton {background-color: dodgerblue;color:white;}')
        btn1.setMaximumHeight(100)
        btn1.setCheckable(False)
        btn1.toggle()
        btn1.clicked.connect(self.btn1_clicked)

        grid.addWidget(btn1, 0,0)
        grid.addWidget(QLabel(), 1,0)

        vbox = QWidget(self)
        self.setCentralWidget(vbox)
        vbox.setLayout(grid)

        self.resize(600, 800)
        self.show()

    def center(self):
        # GUI 프로그램을 화면의 정가운데 띄웁니다.
        qr = self.frameGeometry()
        cp = QDesktopWidget().availableGeometry().center()
        qr.moveCenter(cp)
        self.move(qr.topLeft())

# 메인에서 실행해줍니다.
if __name__ == '__main__':
   app = QApplication(sys.argv)
   ex = MyApp()
   sys.exit(app.exec_())

# Qt Designer 설치 화면
# https://azsxdcfv.tistory.com/1
#https://jy-tblog.tistory.com/26
# https://velog.io/@wlxo0401/PyQt-02-Python-GUI-%ED%94%84%EB%A1%9C%EA%B7%B8%EB%9E%A8-PyQt-UI-%EC%83%9D%EC%84%B1-%EB%B0%8F-%EC%97%B0%EA%B2%B0

# PyQt 튜토리얼
# https://wikidocs.net/21860

2. 두 번째 화면

실행 조건
Create New 버튼을 클릭하여야 함

조건을 추가하기 위한 코드

 btn1.clicked.connect(self.btn1_clicked)

btn1을 클릭하였을 때, btn1_clicked라는 함수를 실행하겠다는 의미다.

 def btn1_clicked(self): QMessageBox.about(self, 'message', 'clicked') # 그리드 레이아웃으로 화면을 구성합니다. grid = QGridLayout() self.setLayout(grid) # 첫 화면에 두기 위한 버튼을 생성합니다. btn1 = QPushButton('Create New', self) btn1.setFont(QFont('Times',20)) btn1.setStyleSheet('QPushButton{color: white;background-color: qlineargradient(spread:pad, x1:0, y1:0, x2:0.857143, y2:0.857955, stop:0 rgba(10, 242, 251, 255), stop:1 rgba(224, 6, 159, 255));border-radius: 20px;}') btn1.setMaximumHeight(100) btn1.setCheckable(False) btn1.toggle() btn1.clicked.connect(self.btn1_clicked) grid.addWidget(btn1, 0,0) grid.addWidget(QLabel(), 1,0) vbox = QWidget(self) self.setCentralWidget(vbox) vbox.setLayout(grid) self.resize(600, 800) self.show()

그리고 btn1_clicked 함수

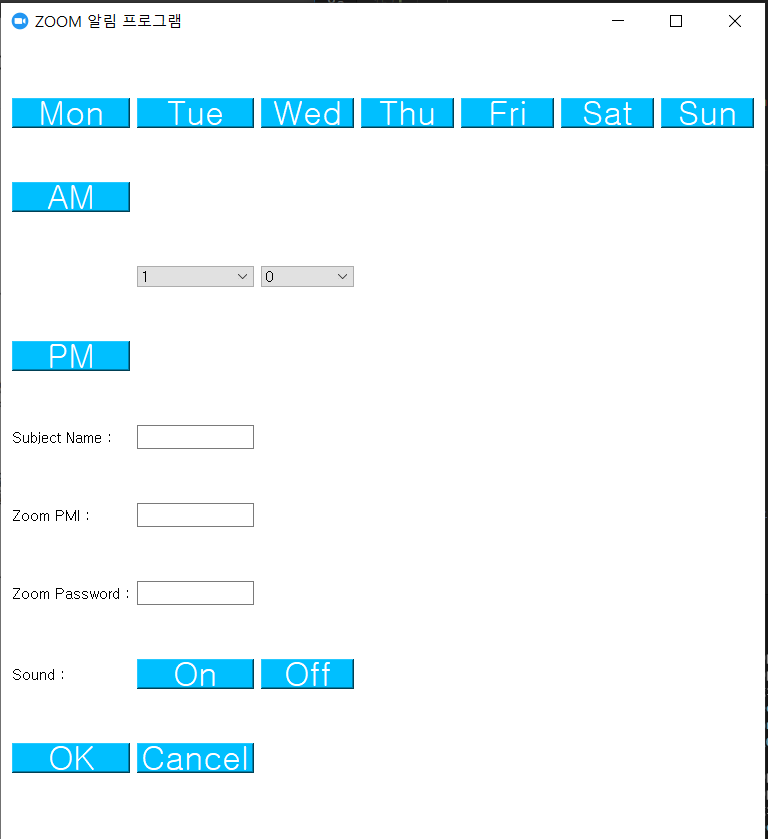

실행 화면

소스 코드

# 모듈을 불러옵니다.
import sys
from PyQt5.QtWidgets import *
from PyQt5.QtGui import *
from PyQt5.QtCore import QCoreApplication, QDate, Qt
from PyQt5 import QtSql


# 메인 클래스를 계획합니다.
class MyApp(QMainWindow, QWidget):
    # UI 화면을 초기화해줍니다.
    def __init__(self):
        super().__init__()
        self.date = QDate.currentDate() # 오늘 날짜를 받아옵니다.
        self.initUI()

    # UI에 포함될 구성요소의 기본적인 설정을 수행해줍니다.
    def initUI(self):
        # 화면의 아이콘과 이미지를 설정해주는 코드입니다.
        self.setWindowTitle('Icon')
        self.setWindowIcon(QIcon('web.png'))
        self.setWindowTitle('ZOOM 알림 프로그램')
        # 화면의 배경색상을 흰색으로 설정해줍니다.
        pal = QPalette()
        pal.setColor(QPalette.Background,QColor(255,255,255))
        self.setAutoFillBackground(True)
        self.setPalette(pal)

        # 그리드 레이아웃으로 화면을 구성합니다.
        grid = QGridLayout()
        self.setLayout(grid)

        # 첫 화면에 두기 위한 버튼을 생성합니다.
        btn1 = QPushButton('Create New', self)
        btn1.setFont(QFont('맑은 고딕',20))
        btn1.setStyleSheet('QPushButton {background-color: dodgerblue;color:white;}')
        btn1.setMaximumHeight(100)
        btn1.setCheckable(False)
        btn1.toggle()
        btn1.clicked.connect(self.btn1_clicked)

        grid.addWidget(btn1, 0,0)
        grid.addWidget(QLabel(), 1,0)

        vbox = QWidget(self)
        self.setCentralWidget(vbox)
        vbox.setLayout(grid)

        self.resize(600, 800)
        self.show()

    def center(self):
        # GUI 프로그램을 화면의 정가운데 띄웁니다.
        qr = self.frameGeometry()
        cp = QDesktopWidget().availableGeometry().center()
        qr.moveCenter(cp)
        self.move(qr.topLeft())

    def btn1_clicked(self):
        # 그리드 레이아웃으로 화면을 구성합니다.
        grid = QGridLayout()
        self.setLayout(grid)

        # 월요일 버튼
        monday = QPushButton('Mon', self)
        monday.setFont(QFont('Times',20))
        monday.setStyleSheet('QPushButton {background-color: deepskyblue;color:white;}')
        monday.setMaximumHeight(30)
        monday.setCheckable(True)
        monday.toggle()
        #sound_on.clicked.connect(self.btn1_clicked)

        grid.addWidget(monday, 0,0)

        # 화요일 버튼
        tuesday = QPushButton('Tue', self)
        tuesday.setFont(QFont('Times',20))
        tuesday.setStyleSheet('QPushButton {background-color: deepskyblue;color:white;}')
        tuesday.setMaximumHeight(30)
        tuesday.setCheckable(False)
        tuesday.toggle()
        #sound_on.clicked.connect(self.btn1_clicked)

        grid.addWidget(tuesday, 0,1)

        # 수요일 버튼
        wednesday = QPushButton('Wed', self)
        wednesday.setFont(QFont('Times',20))
        wednesday.setStyleSheet('QPushButton {background-color: deepskyblue;color:white;}')
        wednesday.setMaximumHeight(30)
        wednesday.setCheckable(False)
        wednesday.toggle()
        #sound_on.clicked.connect(self.btn1_clicked)

        grid.addWidget(wednesday, 0,2)

        # 목요일 버튼
        thursday = QPushButton('Thu', self)
        thursday.setFont(QFont('Times',20))
        thursday.setStyleSheet('QPushButton {background-color: deepskyblue;color:white;}')
        thursday.setMaximumHeight(30)
        thursday.setCheckable(False)
        thursday.toggle()
        #sound_on.clicked.connect(self.btn1_clicked)

        grid.addWidget(thursday, 0,3)

        # 금요일 버튼
        friday = QPushButton('Fri', self)
        friday.setFont(QFont('Times',20))
        friday.setStyleSheet('QPushButton {background-color: deepskyblue;color:white;}')
        friday.setMaximumHeight(30)
        friday.setCheckable(False)
        friday.toggle()
        #sound_on.clicked.connect(self.btn1_clicked)

        grid.addWidget(friday, 0,4)

        # 토요일 버튼
        saturday = QPushButton('Sat', self)
        saturday.setFont(QFont('Times',20))
        saturday.setStyleSheet('QPushButton {background-color: deepskyblue;color:white;}')
        saturday.setMaximumHeight(30)
        saturday.setCheckable(False)
        saturday.toggle()
        #sound_on.clicked.connect(self.btn1_clicked)

        grid.addWidget(saturday, 0,5)

        # 일요일 버튼
        sunday = QPushButton('Sun', self)
        sunday.setFont(QFont('Times',20))
        sunday.setStyleSheet('QPushButton {background-color: deepskyblue;color:white;}')
        sunday.setMaximumHeight(30)
        sunday.setCheckable(False)
        sunday.toggle()
        #sound_on.clicked.connect(self.btn1_clicked)

        grid.addWidget(sunday, 0,6)

        # AM 버튼
        am = QPushButton('AM', self)
        am.setFont(QFont('Times',20))
        am.setStyleSheet('QPushButton {background-color: deepskyblue;color:white;}')
        am.setMaximumHeight(30)
        am.setCheckable(False)
        am.toggle()
        #sound_on.clicked.connect(self.btn1_clicked)

        grid.addWidget(am, 1,0)

        # PM 버튼
        pm = QPushButton('PM', self)
        pm.setFont(QFont('Times',20))
        pm.setStyleSheet('QPushButton {background-color: deepskyblue;color:white;}')
        pm.setMaximumHeight(30)
        pm.setCheckable(False)
        pm.toggle()
        #sound_on.clicked.connect(self.btn1_clicked)

        grid.addWidget(pm, 3,0)


        # 시간 / 분 선택하기
        cb = QComboBox(self)
        cb.addItem('1')
        cb.addItem('2')
        cb.addItem('3')
        cb.addItem('4')
        cb.addItem('5')
        cb.addItem('6')
        cb.addItem('7')
        cb.addItem('8')
        cb.addItem('9')
        cb.addItem('10')
        cb.addItem('11')
        cb.addItem('12')
        cb.move(50, 50)

        grid.addWidget(cb, 2,1)

         # 분 선택하기
        cb = QComboBox(self)
        cb.addItem('0')
        cb.addItem('1')
        cb.addItem('2')
        cb.addItem('3')
        cb.addItem('4')
        cb.addItem('5')
        cb.addItem('6')
        cb.addItem('7')
        cb.addItem('8')
        cb.addItem('9')
        cb.addItem('10')
        cb.addItem('11')
        cb.addItem('12')
        cb.addItem('13')
        cb.addItem('14')
        cb.addItem('15')
        cb.addItem('16')
        cb.addItem('17')
        cb.addItem('18')
        cb.addItem('19')
        cb.addItem('20')
        cb.addItem('21')
        cb.addItem('22')
        cb.addItem('23')
        cb.addItem('24')
        cb.addItem('25')
        cb.addItem('26')
        cb.addItem('27')
        cb.addItem('28')
        cb.addItem('29')
        cb.addItem('30')
        cb.addItem('31')
        cb.addItem('32')
        cb.addItem('33')
        cb.addItem('34')
        cb.addItem('35')
        cb.addItem('36')
        cb.addItem('37')
        cb.addItem('38')
        cb.addItem('39')
        cb.addItem('40')
        cb.addItem('41')
        cb.addItem('42')
        cb.addItem('43')
        cb.addItem('44')
        cb.addItem('45')
        cb.addItem('46')
        cb.addItem('47')
        cb.addItem('48')
        cb.addItem('49')
        cb.addItem('50')
        cb.addItem('51')
        cb.addItem('52')
        cb.addItem('53')
        cb.addItem('54')
        cb.addItem('55')
        cb.addItem('56')
        cb.addItem('57')
        cb.addItem('58')
        cb.addItem('59')
        cb.move(50, 50)

        grid.addWidget(cb, 2,2)


        # 교과목 설정하기
        grid.addWidget(QLabel('Subject Name :'), 4, 0)
        grid.addWidget(QLabel('Zoom PMI :'), 5, 0)
        grid.addWidget(QLabel('Zoom Password :'), 6, 0)

        grid.addWidget(QLineEdit(), 4, 1)
        grid.addWidget(QLineEdit(), 5, 1)
        grid.addWidget(QLineEdit(), 6, 1)

        grid.addWidget(QLabel('Sound :'), 7, 0)

        sound_on = QPushButton('On', self)
        sound_on.setFont(QFont('Times',20))
        sound_on.setStyleSheet('QPushButton {background-color: deepskyblue;color:white;}')
        sound_on.setMaximumHeight(30)
        sound_on.setCheckable(False)
        sound_on.toggle()
        #sound_on.clicked.connect(self.btn1_clicked)

        grid.addWidget(sound_on, 7,1)

        sound_off = QPushButton('Off', self)
        sound_off.setFont(QFont('Times',20))
        sound_off.setStyleSheet('QPushButton {background-color: deepskyblue;color:white;}')
        sound_off.setMaximumHeight(30)
        sound_off.setCheckable(False)
        sound_off.toggle()
        #sound_on.clicked.connect(self.btn1_clicked)

        grid.addWidget(sound_off, 7,2)

        OK = QPushButton('OK', self)
        OK.setFont(QFont('Times',20))
        OK.setStyleSheet('QPushButton {background-color: deepskyblue;color:white;}')
        OK.setMaximumHeight(30)
        OK.setCheckable(False)
        OK.toggle()
        OK.clicked.connect(self.OK_clicked)

        grid.addWidget(OK, 8,0)

        cancel = QPushButton('Cancel', self)
        cancel.setFont(QFont('Times',20))
        cancel.setStyleSheet('QPushButton {background-color: deepskyblue;color:white;}')
        cancel.setMaximumHeight(30)
        cancel.setCheckable(False)
        cancel.toggle()
        cancel.clicked.connect(self.cancel_clicked)

        grid.addWidget(cancel, 8,1)

        vbox = QWidget(self)
        self.setCentralWidget(vbox)
        vbox.setLayout(grid)

        self.resize(600, 800)
        self.show()


    def onActivated(self, text):
        self.lbl.setText(text)
        self.lbl.adjustSize()

# 메인에서 실행해줍니다.
if __name__ == '__main__':
   app = QApplication(sys.argv)
   ex = MyApp()
   sys.exit(app.exec_())

# Qt Designer 설치 화면
# https://azsxdcfv.tistory.com/1
#https://jy-tblog.tistory.com/26
# https://velog.io/@wlxo0401/PyQt-02-Python-GUI-%ED%94%84%EB%A1%9C%EA%B7%B8%EB%9E%A8-PyQt-UI-%EC%83%9D%EC%84%B1-%EB%B0%8F-%EC%97%B0%EA%B2%B0

# PyQt 튜토리얼
# https://wikidocs.net/21860

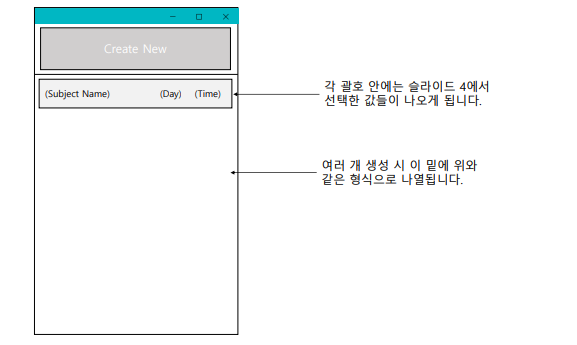

세번째 화면

# 모듈을 불러옵니다.
import sys
from PyQt5.QtWidgets import *
from PyQt5.QtGui import *
from PyQt5.QtCore import QCoreApplication, QDate, Qt
from PyQt5 import QtSql


# 메인 클래스를 계획합니다.
class MyApp(QMainWindow, QWidget):
    # UI 화면을 초기화해줍니다.
    def __init__(self):
        super().__init__()
        self.date = QDate.currentDate() # 오늘 날짜를 받아옵니다.
        self.initUI()

    # UI에 포함될 구성요소의 기본적인 설정을 수행해줍니다.
    def initUI(self):
        # 화면의 아이콘과 이미지를 설정해주는 코드입니다.
        self.setWindowTitle('Icon')
        self.setWindowIcon(QIcon('web.png'))
        self.setWindowTitle('ZOOM 알림 프로그램')
        # 화면의 배경색상을 흰색으로 설정해줍니다.
        pal = QPalette()
        pal.setColor(QPalette.Background,QColor(255,255,255))
        self.setAutoFillBackground(True)
        self.setPalette(pal)

        # 그리드 레이아웃으로 화면을 구성합니다.
        grid = QGridLayout()
        self.setLayout(grid)

        # 첫 화면에 두기 위한 버튼을 생성합니다.
        btn1 = QPushButton('Create New', self)
        btn1.setFont(QFont('맑은 고딕',20))
        btn1.setStyleSheet('QPushButton {background-color: dodgerblue;color:white;}')
        btn1.setMaximumHeight(100)
        btn1.setCheckable(False)
        btn1.toggle()
        btn1.clicked.connect(self.btn1_clicked)

        grid.addWidget(btn1, 0,0)
        grid.addWidget(QLabel(), 1,0)

        vbox = QWidget(self)
        self.setCentralWidget(vbox)
        vbox.setLayout(grid)

        self.resize(600, 800)
        self.show()

    def center(self):
        # GUI 프로그램을 화면의 정가운데 띄웁니다.
        qr = self.frameGeometry()
        cp = QDesktopWidget().availableGeometry().center()
        qr.moveCenter(cp)
        self.move(qr.topLeft())

    def btn1_clicked(self):
        # 그리드 레이아웃으로 화면을 구성합니다.
        grid = QGridLayout()
        self.setLayout(grid)

        # 월요일 버튼
        monday = QPushButton('Mon', self)
        monday.setFont(QFont('Times',20))
        monday.setStyleSheet('QPushButton {background-color: deepskyblue;color:white;}')
        monday.setMaximumHeight(30)
        monday.setCheckable(True)
        monday.toggle()
        #sound_on.clicked.connect(self.btn1_clicked)

        grid.addWidget(monday, 0,0)

        # 화요일 버튼
        tuesday = QPushButton('Tue', self)
        tuesday.setFont(QFont('Times',20))
        tuesday.setStyleSheet('QPushButton {background-color: deepskyblue;color:white;}')
        tuesday.setMaximumHeight(30)
        tuesday.setCheckable(False)
        tuesday.toggle()
        #sound_on.clicked.connect(self.btn1_clicked)

        grid.addWidget(tuesday, 0,1)

        # 수요일 버튼
        wednesday = QPushButton('Wed', self)
        wednesday.setFont(QFont('Times',20))
        wednesday.setStyleSheet('QPushButton {background-color: deepskyblue;color:white;}')
        wednesday.setMaximumHeight(30)
        wednesday.setCheckable(False)
        wednesday.toggle()
        #sound_on.clicked.connect(self.btn1_clicked)

        grid.addWidget(wednesday, 0,2)

        # 목요일 버튼
        thursday = QPushButton('Thu', self)
        thursday.setFont(QFont('Times',20))
        thursday.setStyleSheet('QPushButton {background-color: deepskyblue;color:white;}')
        thursday.setMaximumHeight(30)
        thursday.setCheckable(False)
        thursday.toggle()
        #sound_on.clicked.connect(self.btn1_clicked)

        grid.addWidget(thursday, 0,3)

        # 금요일 버튼
        friday = QPushButton('Fri', self)
        friday.setFont(QFont('Times',20))
        friday.setStyleSheet('QPushButton {background-color: deepskyblue;color:white;}')
        friday.setMaximumHeight(30)
        friday.setCheckable(False)
        friday.toggle()
        #sound_on.clicked.connect(self.btn1_clicked)

        grid.addWidget(friday, 0,4)

        # 토요일 버튼
        saturday = QPushButton('Sat', self)
        saturday.setFont(QFont('Times',20))
        saturday.setStyleSheet('QPushButton {background-color: deepskyblue;color:white;}')
        saturday.setMaximumHeight(30)
        saturday.setCheckable(False)
        saturday.toggle()
        #sound_on.clicked.connect(self.btn1_clicked)

        grid.addWidget(saturday, 0,5)

        # 일요일 버튼
        sunday = QPushButton('Sun', self)
        sunday.setFont(QFont('Times',20))
        sunday.setStyleSheet('QPushButton {background-color: deepskyblue;color:white;}')
        sunday.setMaximumHeight(30)
        sunday.setCheckable(False)
        sunday.toggle()
        #sound_on.clicked.connect(self.btn1_clicked)

        grid.addWidget(sunday, 0,6)

        # AM 버튼
        am = QPushButton('AM', self)
        am.setFont(QFont('Times',20))
        am.setStyleSheet('QPushButton {background-color: deepskyblue;color:white;}')
        am.setMaximumHeight(30)
        am.setCheckable(False)
        am.toggle()
        #sound_on.clicked.connect(self.btn1_clicked)

        grid.addWidget(am, 1,0)

        # PM 버튼
        pm = QPushButton('PM', self)
        pm.setFont(QFont('Times',20))
        pm.setStyleSheet('QPushButton {background-color: deepskyblue;color:white;}')
        pm.setMaximumHeight(30)
        pm.setCheckable(False)
        pm.toggle()
        #sound_on.clicked.connect(self.btn1_clicked)

        grid.addWidget(pm, 3,0)


        # 시간 / 분 선택하기
        cb = QComboBox(self)
        cb.addItem('1')
        cb.addItem('2')
        cb.addItem('3')
        cb.addItem('4')
        cb.addItem('5')
        cb.addItem('6')
        cb.addItem('7')
        cb.addItem('8')
        cb.addItem('9')
        cb.addItem('10')
        cb.addItem('11')
        cb.addItem('12')
        cb.move(50, 50)

        grid.addWidget(cb, 2,1)

         # 분 선택하기
        cb = QComboBox(self)
        cb.addItem('0')
        cb.addItem('1')
        cb.addItem('2')
        cb.addItem('3')
        cb.addItem('4')
        cb.addItem('5')
        cb.addItem('6')
        cb.addItem('7')
        cb.addItem('8')
        cb.addItem('9')
        cb.addItem('10')
        cb.addItem('11')
        cb.addItem('12')
        cb.addItem('13')
        cb.addItem('14')
        cb.addItem('15')
        cb.addItem('16')
        cb.addItem('17')
        cb.addItem('18')
        cb.addItem('19')
        cb.addItem('20')
        cb.addItem('21')
        cb.addItem('22')
        cb.addItem('23')
        cb.addItem('24')
        cb.addItem('25')
        cb.addItem('26')
        cb.addItem('27')
        cb.addItem('28')
        cb.addItem('29')
        cb.addItem('30')
        cb.addItem('31')
        cb.addItem('32')
        cb.addItem('33')
        cb.addItem('34')
        cb.addItem('35')
        cb.addItem('36')
        cb.addItem('37')
        cb.addItem('38')
        cb.addItem('39')
        cb.addItem('40')
        cb.addItem('41')
        cb.addItem('42')
        cb.addItem('43')
        cb.addItem('44')
        cb.addItem('45')
        cb.addItem('46')
        cb.addItem('47')
        cb.addItem('48')
        cb.addItem('49')
        cb.addItem('50')
        cb.addItem('51')
        cb.addItem('52')
        cb.addItem('53')
        cb.addItem('54')
        cb.addItem('55')
        cb.addItem('56')
        cb.addItem('57')
        cb.addItem('58')
        cb.addItem('59')
        cb.move(50, 50)

        grid.addWidget(cb, 2,2)


        # 교과목 설정하기
        grid.addWidget(QLabel('Subject Name :'), 4, 0)
        grid.addWidget(QLabel('Zoom PMI :'), 5, 0)
        grid.addWidget(QLabel('Zoom Password :'), 6, 0)

        grid.addWidget(QLineEdit(), 4, 1)
        grid.addWidget(QLineEdit(), 5, 1)
        grid.addWidget(QLineEdit(), 6, 1)

        grid.addWidget(QLabel('Sound :'), 7, 0)

        sound_on = QPushButton('On', self)
        sound_on.setFont(QFont('Times',20))
        sound_on.setStyleSheet('QPushButton {background-color: deepskyblue;color:white;}')
        sound_on.setMaximumHeight(30)
        sound_on.setCheckable(False)
        sound_on.toggle()
        #sound_on.clicked.connect(self.btn1_clicked)

        grid.addWidget(sound_on, 7,1)

        sound_off = QPushButton('Off', self)
        sound_off.setFont(QFont('Times',20))
        sound_off.setStyleSheet('QPushButton {background-color: deepskyblue;color:white;}')
        sound_off.setMaximumHeight(30)
        sound_off.setCheckable(False)
        sound_off.toggle()
        #sound_on.clicked.connect(self.btn1_clicked)

        grid.addWidget(sound_off, 7,2)

        OK = QPushButton('OK', self)
        OK.setFont(QFont('Times',20))
        OK.setStyleSheet('QPushButton {background-color: deepskyblue;color:white;}')
        OK.setMaximumHeight(30)
        OK.setCheckable(False)
        OK.toggle()
        OK.clicked.connect(self.OK_clicked)

        grid.addWidget(OK, 8,0)

        cancel = QPushButton('Cancel', self)
        cancel.setFont(QFont('Times',20))
        cancel.setStyleSheet('QPushButton {background-color: deepskyblue;color:white;}')
        cancel.setMaximumHeight(30)
        cancel.setCheckable(False)
        cancel.toggle()
        cancel.clicked.connect(self.cancel_clicked)

        grid.addWidget(cancel, 8,1)

        vbox = QWidget(self)
        self.setCentralWidget(vbox)
        vbox.setLayout(grid)

        self.resize(600, 800)
        self.show()

    def OK_clicked(self):
        # 그리드 레이아웃으로 화면을 구성합니다.
        grid = QGridLayout()
        self.setLayout(grid)

        # 첫 화면에 두기 위한 버튼을 생성합니다.
        btn1 = QPushButton('Create New', self)
        btn1.setFont(QFont('맑은 고딕',20))
        btn1.setStyleSheet('QPushButton {background-color: dodgerblue;color:white;}')
        btn1.setMaximumHeight(100)
        btn1.setCheckable(False)
        btn1.toggle()
        btn1.clicked.connect(self.btn1_clicked)

        grid.addWidget(btn1, 0,0)
        grid.addWidget(QLabel('SQL DB가 올 자리입니다 :)'), 1,0)

        vbox = QWidget(self)
        self.setCentralWidget(vbox)
        vbox.setLayout(grid)

        self.resize(600, 800)
        self.show()

    def cancel_clicked(self):
        self.initUI()

    def onActivated(self, text):
        self.lbl.setText(text)
        self.lbl.adjustSize()

# 메인에서 실행해줍니다.
if __name__ == '__main__':
   app = QApplication(sys.argv)
   ex = MyApp()
   sys.exit(app.exec_())

# Qt Designer 설치 화면
# https://azsxdcfv.tistory.com/1
#https://jy-tblog.tistory.com/26
# https://velog.io/@wlxo0401/PyQt-02-Python-GUI-%ED%94%84%EB%A1%9C%EA%B7%B8%EB%9E%A8-PyQt-UI-%EC%83%9D%EC%84%B1-%EB%B0%8F-%EC%97%B0%EA%B2%B0

# PyQt 튜토리얼
# https://wikidocs.net/21860

'Computer Science > BackEnd' 카테고리의 다른 글

Backend 기초 #2 | 쿠키(Cookie), 세션(Session)이란?  (0) 2022.08.05
Backend 기초 #1 | HTTP HyperText Transfer Protocl이란?  (0) 2022.08.05
#1 | PyQt5를 이용해서 화면 구성하기  (0) 2022.01.25
프로그램 소개 사이트 개발 #2 | 사이트맵 작성, 화면 설계도, 화면별 프로세스, DB 설계 | 기획  (0) 2022.01.09
프로그램 소개 사이트 개발 #1 | 웹 개발에 대한 이해, 기획  (0) 2022.01.09

'Computer Science/BackEnd'의 다른글

  • 현재글# 2 | PyQt5를 이용해서 레이아웃 배치하고 꾸미기

관련글

티스토리툴바
