Binary Search Trees

Binary search Trees

Balanced binary search trees : AVL Tree

heap

provides a good performance of O(log2n) only when handling the root

for searching other item than the root, it takes O(n) time

why binary search tree is necessary

requires O(log2n) for any item, which is proportional to tree height (h)

=> 이진 탐색을 트리로 구현한 것

Binary search tree

assume no overlapping elements in tree

def)

* the root > left sub-tree nodes

* the root < right sub-tree nodes

* left & right sub-trees also must be binary search tree

binary search tree의 조건

반복문과 재귀문으로 구현할 수 있다.

재귀문 버전 => O(log2n) + recursion overhead

def rBST(root, key):
    if not root: return None
    if key == root.data: return root
    if key < root.data:
        return rBST(root.left, key)
    return rBST(root.right, key)

반복문 버전 => O(log2n)

def iBST(root, key):
    while root:
        if key==root.data: return root
        if key < root.data:
            root = root.left
        else:
            root = root.right
    return None

수를 주면, 구성하는 것은 쉽다

Insertion Algorithm

before inserting a node, it should confirm whether there is no overlapping node.

if overlapped, insertion fails

otherwise, attach a new node (35) to the last item compared (40)

왼쪽, 오른쪽으로 root와 크기를 비교해가면서 내려가는데,

만약 노드가 중복인 요소가 있다면, 거절 아니라면 위치시키기

BST는 흥미롭네 ㅎㅎ >0<

overlap_check()

if tree is empty, or any overlapped node exists, NULL is returned

otherwise, a node searched lastly will be returned

time complexity : O(log2n)

search : O(log2n)

insert : O(1)

def insert(self, item):
    node = Node(item)
    if not self.tree:
        self.tree = node
    else:
        temp = self.tree
        # 상위 노드
        prev = None
        while True:
            # 직전 노드 저장해두기
            prev = temp
            # item 현재 삽입하려는 item이
            # prev보다 작다면,
            # left로 내려가기
            if item < prev.data:
                temp = temp.left
                if not temp:
                    # 만약에 left 값이 비어있다면,
                    # 노드를 넣어준다 :)
                    prev.left = node
                    return
                    # 비어있지 않다면 다시 내려가주어야 한다.
            # right로 내려가기
            elif item > prev.data:
                temp = temp.right
                if not temp:
                    # 만약에 right 값이 비어있다면,
                    # 노드를 넣어준다 :)
                    prev.right = node
                    return
            # item == prev.data => 중복이므로 pass
            else: return

만약에 empty가 아니라면? empty인 곳에 붙여준다

중간 시험 점수가 높으니, 과제 점수가 변별력이 있을 것이다.

delete Algorithm

=> delete를 해도 BST 구조가 유지되어야 한다.

* deleting a leaf node

assign NULL to the parent's link

* deleting a node with one child

assign its child to the parent's link

* deleting a non-leaf node with two children

choose either the max node in left sub-tree or the min node in right sub-tree which can reduce the tree height

substitutes chosen node for the node to be deleted

rebuild the sub-tree for BST

two-child case일 때는 삭제하고나서도 BST가 유지되려면, 왼쪽 sub tree의 max 값이 오거나

오른쪽 sub tree의 min 값이 와줘야 한다.

Time complexity => O(log2n)

더 나은 방법은 무엇일까?

70만 올라가면, 성능은 높이에 비례한다. 근데 70이 가면 높이가 그대로다.

BST가 효율적인 형태가 되기 위해서는, 높이를 효과적으로 줄여야 함 ㅇㅎㅇㅎ

임의로 left의 max로 한다고 고정해둔다.

def find_delete(self, item):
    # item을 삭제하여라
    # 재귀 함수 작동을 위함
    self.tree = self.delete_node(self.tree, item)

def delete_node(self, node, item):
    if node is None: return None
    if node.data > item:
        # 탐색을 왼쪽 subtree로 이어간다
        node.left = self.delete_node(node.left, item)
        return node
    elif node.data < item:
        # 탐색을 오른쪽 subtree로 이어간다
        node.right = self.delete_node(node.right, item)
        return node
    else: # 실제로 삭제하는 경우
        if node.left is None: # 단말 노드이거나 one child인 경우
            return node.right # None이거나, right subtree를 주면 된다.
        elif node.right is None: # 단말 노드이거나 one child인 경우
            return node.left # None이거나, left subtree를 주면 된다.
        elif node.left is None and node.right is None:
            return None
        else:
            # two child
            left_max = self.find_max(node.left) # left subtree의 max를 임의로 정한다.
            node.data = left_max.data
            # 또다른 삭제 연산을 발생시킨다
            node.left = self.delete_node(node.left, left_max.data)
            return node

최댓값을 찾아보자

def find_max(self, root):
    # BST 이므로 최댓값은 최대한 우측으로
    # 최솟값은 최대한 좌측으로 이동해주면 된다!
    if not root: return None
    node = root
    while node.right:
        node = node.right
    return node

time complexity

average : O(log2n)

Worse : O(n) - skewed tree

best case : O(log2n) - balanced binary search tree

Binary Balanced Search Tree

if height of binary search tree is n

insertion, deletion can be O(n) in the worst case

good to keep a tree height small

minimum height of a binary tree with n nodes : O(log2n)

goal

- keep the height of a binary search tree O(log2n)

balanced binary search trees

AVL tree, 2-3-4 tree, red-black tree

suggestion

every node must have left and right subtrees of the same height

hard to satisfy this except for complete full binary trees

our choice

for each node, the height of the left and right subtrees can differ at most 1

Balance Factor

balance factor (BF) of a node

: height (left subtree of the node) -

AVL Tree

사람 이름 : Adelson-Velskii and Landis, 1962

AVL tree is a binary search tree in which

for every node in the tree, the height of the left and right sub-trees differ by at most 1

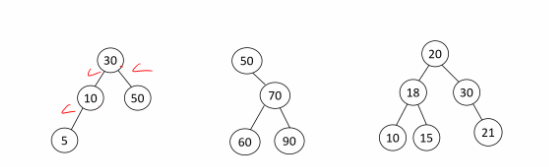

height 0

height 2

인 경우에는 AVL 조건 위배

Balance Factor

BF balance factor of a node : height (left subtree of the node) - height(right subtree)

avl tree: BF of all node should be 1, 0, -1

* height (empty sub tree) = -1

(8) = 0 - (-1) = 1

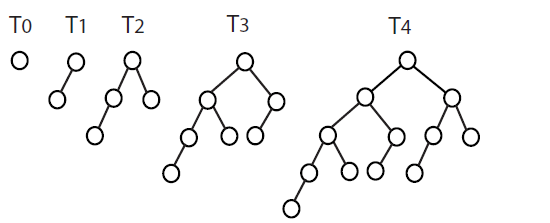

AVL tree with min number of nodes

Nh = minimum # of nodes in a tree of height h

최소 구성원(?)

N0 = 1

N1 = 2

N2 = 4

N3 = N2+N1+1 = 7

Nh = Nh-1+Nh-2 + 1

thus searching on an AVL tree will take O(log2n) time

Insertion in AVL Tree

basically follows insertion strategy of binary search tree

but may cause violation of AVL tree property

restore the destroyed balance condition if needed

after an insertion, only nodes that are on the path from the insertion point to the root might have their balance altered

because only those nodes have their subtrees altered

rebalance the tree at the deepest, such node guarantees that the entire tree satisfies the avl property

After an insertion, only nodes that are on the path from the insertion point to the root might have their balance altered •

Because only those nodes have their subtrees altered •

Rebalance the tree at the deepest, such node guarantees that the entire tree satisfies the AVL property

Rebalance of AVL tree

rebalance of AVL tree are done with simple modification to tree, known as rotation

insertion occurs on the outside

Denote the node that must be rebalanced α

• LL case : an insertion into the left subtree of the left child of α

• LR case : an insertion into the right subtree of the left child of α

• RL case : an insertion into the left subtree of the right child of α

• RR case : an insertion into the right subtree of the right child of α

• Rebalance of AVL tree are done with simple modification to tree, known as rotation

• Insertion occurs on the "outside"

• left-left or right-right cases

• Is fixed by single rotation of the tree

• Insertion occurs on the "inside"

• left-right or right-left cases

• is fixed by double rotation of the tree

First, insert a new key as a new leaf just as in ordinary binary sear ch tree

• Check BF of each node in the path between a new node and the root.

• If BF is OK(0, -1, +1), proceed to parent(x)

• If not, restructure it by doing either a single rotation or a double rotation

• Note

• once we perform a rotation at a node x,

we won’t need to perform any rot ation at any ancestor of x.

single rotation - LL insertion

single rotation - RR insertion

example - AVL tree construction

BST insertion으로 넣는다.

LL case -> single rotation

RR case -> single rotation

계속 넣어주되, LL, RR 발생시 single rotation 해주기

RL case -> double rotation 해주어야 한다.

Double Rotation (left-right insertion)

Facts

- a new key is inserted in the subtree B or C

k3-k1-k2 forms a zig-zag shape

solution

- the only alternative is to place k2 as the new root ㅇㅎ

Double Rotation (right-left insertion)

facts

- the new key is inserted in the subtree B or C

- the AVL-property is violated at k1

- k1-k3-k2 forms a zig-zag..

15한테 14를 주어야 한다. child로..

subtree 관계를 잘 살펴보아야 한다.

13을 넣는다면?

double notation이랑 single notation의 처치 방법이 다르다.

LLRRLRRL

경로 지그재그 / 직진인지에 따라서 subtree가 달라질 수 있다. balance가 유지된다.

B-Trees

motivation for B-Trees

index structures for large datasets cannot be sotred in main memory

storing it on disk requires different approach to efficiency

assuming that a disk spins at 7200 RPM, one revolution occurs in 1/120 of a second, or 8.3 ms

crudely speaking, one disk access takes the same times as 200000 instructions

디스크 엑세스하는 것이 느리다.

Motivation (count.)

assume that we use an AVL tree to store about 20 milion records

we end up with a very deep binary tree with lots of different disk access

log2 20000000 is about 24, 0.2 seconds

we know we can't improve on the logn lower bound on search for binary tree

the solution is to use more branches and thus reduce the height of the tree

B-TREE의 아이디어

=> binary 라는 조건을 버려야 height를 낮출 수 있다.

다원 트리

Comparing Trees

Binary trees

Multi-way trees

B-tree can be M-trees

m-way b-tree m원b트리

def) a b-tree of order m is an m-way search tree that either is empty or satisfies the following properties

: the root node has at least two children or a leaf(terminal node)

: all nodes other than the root node and external nodes(terminal) have at most m and at least ceil(m/2) children

내부 노드는 최대 m개, 최소 ceil(m/2) m/2의 올림 값의 children을 갖는다

: all external nodes(terminal node) are at the same level

: the number of keys is one less than the number of children for non-leaf nodes, and at most m-1 and at least ceil(m/2)-1 for leaf nodes => 이 조건은 뭐지?

m=3 삼원 트리 2-3 tree, min children = ceil(3/2) = 2
degree(internal, children number) = 2, 3
degree(root) = 0,2,3
# keys in a leaf node = 1,2

m=4 (2-3-4 tree) min children = 2
degree = 2,3,4
degree (root) = 0,2,3,4
# keys in a leaf node = 1,2,3

m = 5, min children = 3
